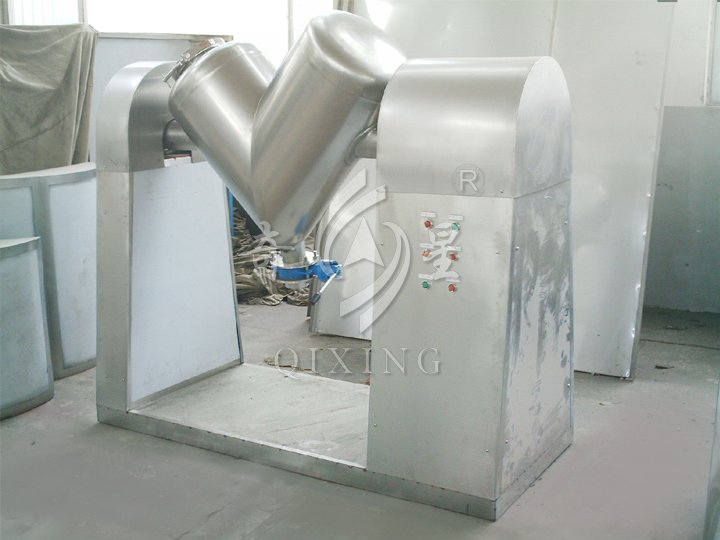

VH Series V Type Mixer
VH Series V Type Mixer
FEATURES
◎ With the specially-designed mixing drum, VH mixer enjoys its high efficiency in mixing because it has no dead bands.
◎ It is made by stainless steel with polished inner and outer surface.
◎ It is capable of mixing uniformly and is well adopted featuring its well-designed shape in dry particle mixing in many industries.
APPLICATION
This equipment is suitable for powder of particle mixing in industries like pharmacy, chemicals, food, architectural material and so on.

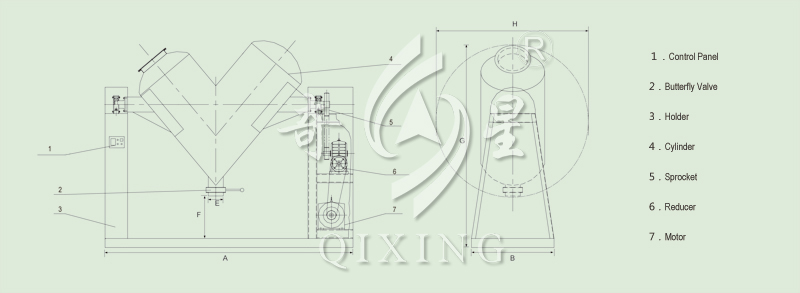

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
| Model |
Total Volume (m³) |
Loading Coefficirent (L) |
Max.Loading Volume (L) |
A | B | C | D | E | F | G | H | Rotating Height (mm) |
Motor Power (kw) |
Total Weight (kg) |
Modee of Vacuum Pump |
|
length (mm) |
Width (mm) |
Height of Centerline (mm) |
Inlet Diameter (mm) |
Outlet Diameter (mm) |
Outlet Height (mm) |
Rotating Height (mm) |
Rotating Diameter (mm) |
||||||||
| VH-0.3 | 0.3 | 0.4 | 120 | 2220 | 900 | 1470 | φ300 | φ100 | 750 | 2290 | φ1540 | 15 | 1.5 | 350 | w2 |
| VH-0.5 | 0.5 | 0.4 | 200 | 2400 | 950 | 1510 | φ300 | φ150 | 750 | 2370 | φ1620 | 15 | 1.5 | 550 | w2或aSK-1.5 |
| VH-1.0 | 1.0 | 0.4 | 400 | 2800 | 1000 | 1660 | φ400 | φ150 | 750 | 2580 | φ2130 | 12 | 3.0 | 1000 | w3或aSK-3 |
| VH-1.5 | 1.5 | 10.4 | 600 | 3000 | 1100 | 1750 | φ400 | φ200 | 750 | 2580 | φ2400 | 10 | 4.0 | 1100 | w3或aSK-3 |
| VH-2.0 | 2.0 | 0.4 | 800 | 3200 | 1200 | 2000 | φ400 | φ200 | 750 | 3350 | φ2500 | 10 | 5.5 | 1500 | w3或aSK-3 |
| VH-2.5 | 2.5 | 0.4 | 1000 | 3400 | 1300 | 1300 | φ400 | φ200 | 750 | 3800 | φ2880 | 8 | 7.5 | 1700 | w4或aSK-6 |
| VH-3.0 | 3.0 | 0.4 | 1200 | 3600 | 1400 | 1400 | φ400 | φ200 | 750 | 3850 | φ3000 | 6 | 7.5 | 1800 | w5或aSK-9 |
