WFJ Series Micro-particle Grinder
WFJ Series Micro-particle Grinder
INTRODUCTION

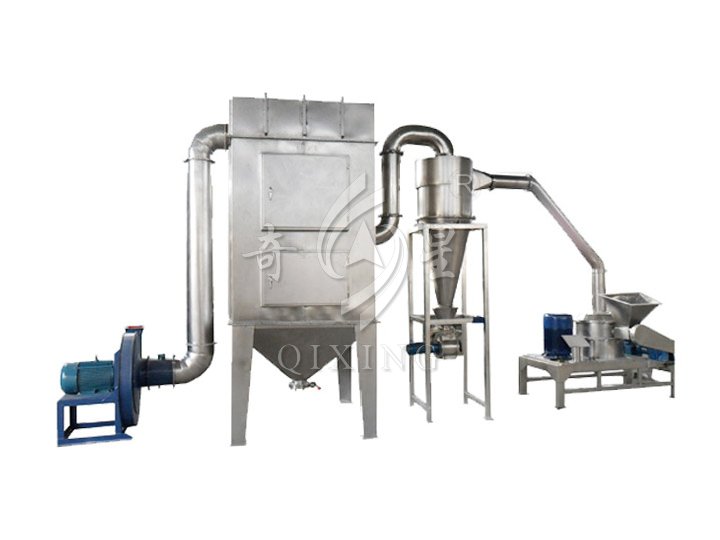

WFJ micro-particle grinder is composed by three parts----main machinery, auxiliary machinery and electric cabinet. It is featured by winnowing, screen cloth free and uniform particles with the capacity of continuous production. It is suitable for grinding brittle materials in industries like pharmacy, chemicals and food.
TECHNICAL PARAMETERS
|
Mode / ltem |
Unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Production Capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Mesh Size of Feed | mm | ＜10 | ＜10 | ＜15 |
| Discharge Size | mesh | 80-320 | 80-450 | 80-450 |
| Total Power | kw | 13.5 | 17.5 | 46 |
| Main Revolution | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
|
Boundary Dimension |
mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| Weight | kg | 850 | 980 | 1500 |
