ZKS、QVC Series Vacuum Feeder
INTRODUCTION
They all meet the GMP standard and enjoys the fast charging speed, long service life, convenient operation, cleanliness and safety.
FEATURES
◎ It enjoys the fast charging speed.
◎ Continuous operation.
◎ No leaks, cleanliness and safety, compact structure, movability and convenient operation.
◎ It is suitable for cleaning the workshops.
◎ Fast-assembly hoop makes it easy to clean and dismount the equipment.
APPLICATION
◎ Suitable for powder, small particle (φ<5mm) and ball-shaped materials.
◎ Suitable for various sealed containers and devices like two-dimensional one, three-dimensional one, twin-cone one and V-shaped one in terms of charging.

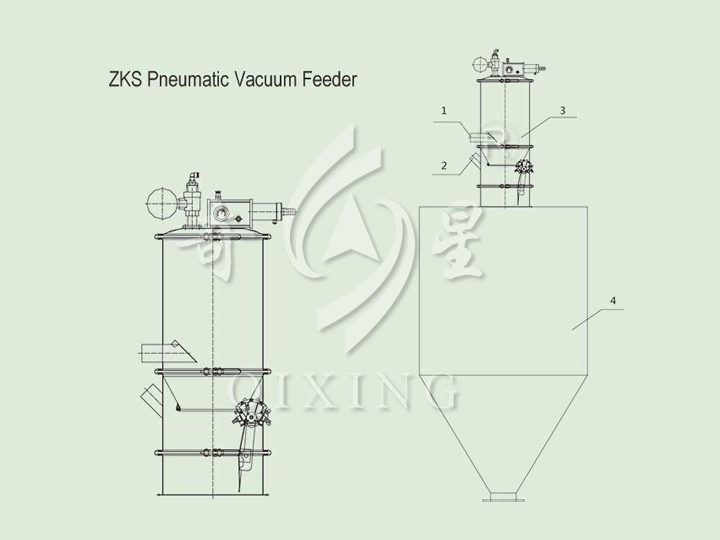

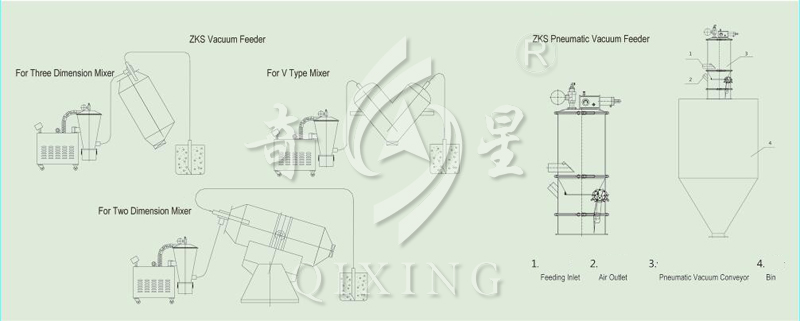

STRUCTURE SCHEMATIC
TECHNICAL PARAMETERS
ZKS Series Vacuum Feeder
|
Item\Model
|
ZKS-1
|
ZKS-2
|
ZKS-3
|
ZKS-4
|
ZKS-6
|
ZKS-7
|
ZKS-10-6
|
ZKS-20-6
|
|
Power(kw)
|
1.5
|
2.2
|
3
|
5.5
|
5.5
|
7.5
|
7.5
|
11
|
|
Delivery Capacity
|
400
|
600
|
1200
|
2500
|
3200
|
6000
|
6000 delivery distance:10m |
|
ZKS Series Pneumatic Vacuum Feeder
|
Item\Model
|
Unit
|
QVC-1
|
QVC-2
|
QVC-3
|
QVC-4
|
QVC-5
|
|
Delivery Amount
|
kg/h
|
＜18
|
＜20
|
＜22
|
＜28
|
＜31
|
|
Stock Volume
|
L
|
210
|
300
|
330
|
370
|
480
|
|
Working Pressure
|
Mpa
|
2.2
|
3.0
|
4.0
|
5.5
|
7.5
|
|
Compressed Consumption
|
NL/min
|
900-1200
|
1200-1500
|
1500-1800
|
1800-2100
|
2100-2400
|
