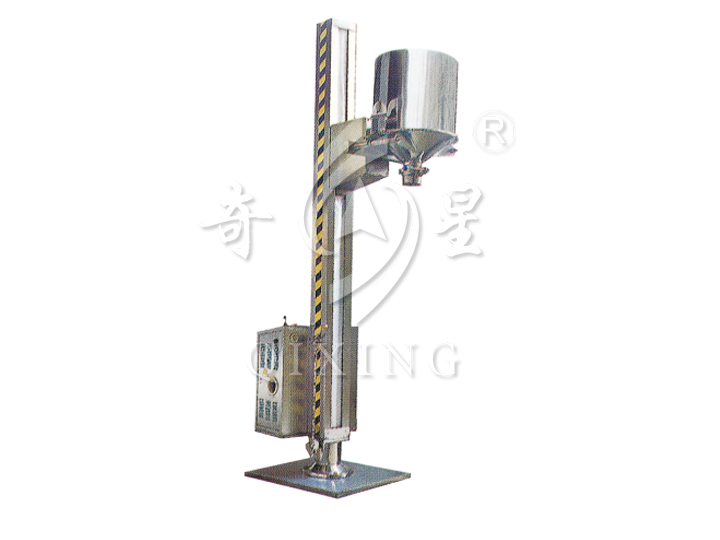

TJG Series Solid Lift Feeder
TJG Series Solid Lift Feeder
INTRODUCTION
TJG Series Solid Lift Feeder is constituted by two parts--elevator and base. The elevator is composed by rack, hydraulic-pressure lifting system and turnover mechanism of charging door.
WORKING PRINCIPLE
Connect the charging door and charging barrel of the elevator firstly, and manipulate the action bar. The charging door and charging barrel will be lifted simultaneously. Then manipulate the turnover action bar, and the charging barrel will be turned 180 degree. The upside-down barrel will be sent into needed position and be filled with discharge materials through charging door.

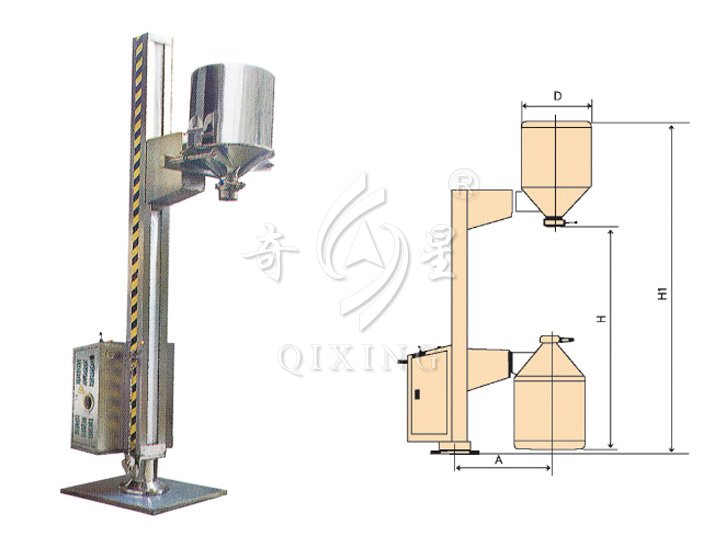

TECHNICAL PARAMETERS
|
Item
|
H
|
A
|
D
|
H1
|
|
TJG-50
|
2050
|
650
|
Φ485
|
2900
|
|
TJG-100
|
2050
|
750
|
Φ590
|
2900
|
|
Name / Item
|
Packing Capacity（kg）
|
Specification
（dia×high）(mm) |
Thichness （mm）
|
|
Charging Barrel
|
50
|
Φ485×460
|
0.8
|
|
100
|
Φ590×550
|
0.8
|
|
|

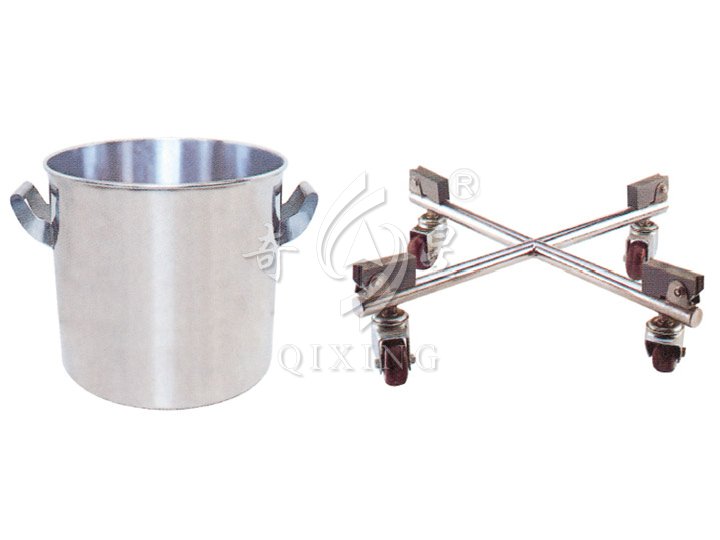

Trolley for Charging Barrel
|
50-100
|
Φ500×600
|
|
